Monacor AR-30 Weatherproof sound exciter

Monacor AR-30 exciter

Impedance
8 ohms
Power Handling (RMS)
15 Watts
Power Handling (max)
30 Watts

€39.95

1 in stock

Delivery options and total cost confirmed at checkout.

View full specifications
Not sure it fits your setup?

Ask us to check connections, dimensions and compatibility before you order.

Get compatibility advice
SKU: AR-30 Categories: ,
Description

Highlights

  • Depending on the mounting surface, very wide bandwidth reproduction with amazing volumes
  • Very robust and weatherproof version, thus suitable for outdoor applications and in an extra dirty environment
  • Suitable for home and outdoor PA applications, e.g. on doors, cupboards, shelves and on boats
  • Waterproof (IP68)

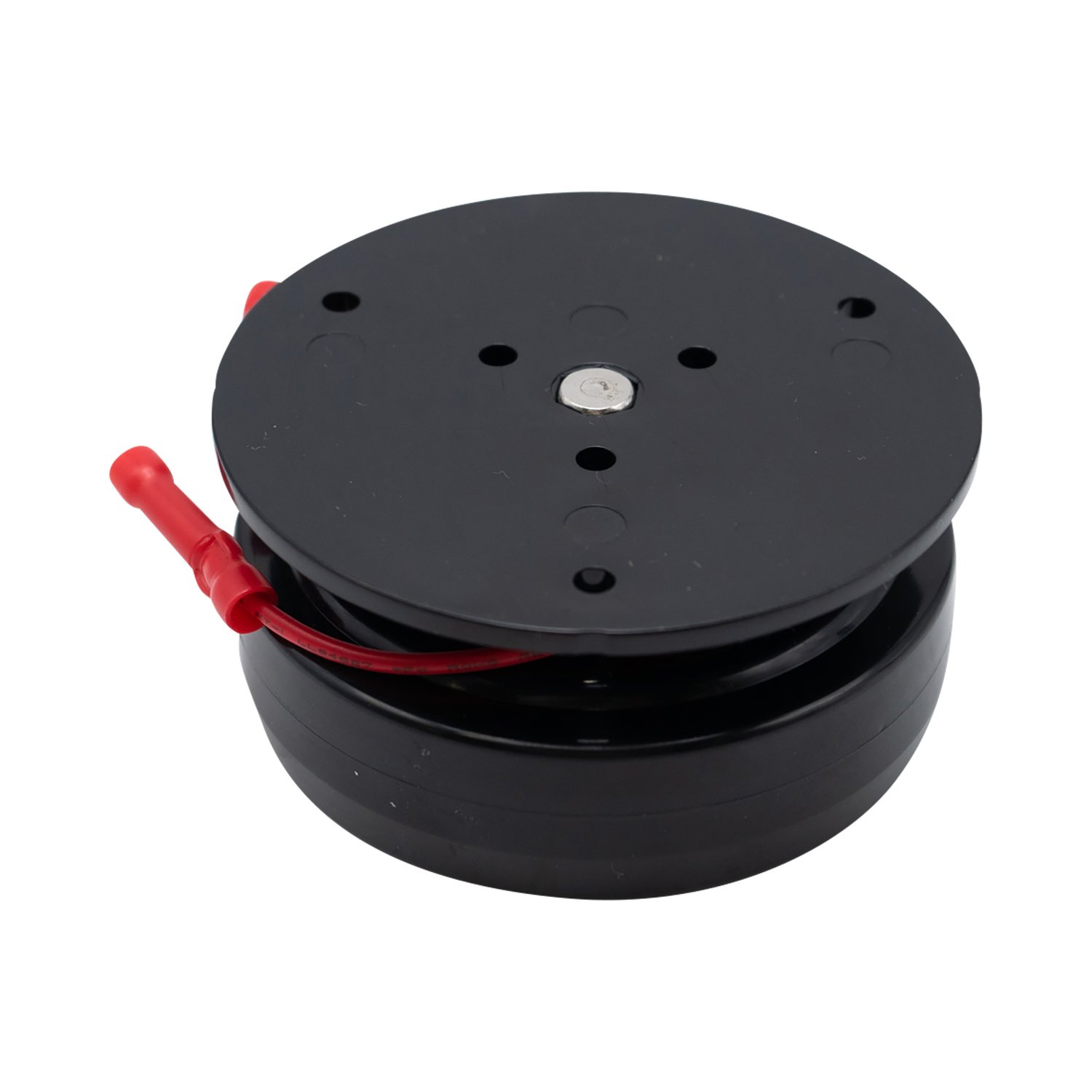

  • Supplied with screwable mounting plate



Product details



Weatherproof and Robust Exciters for music and voice reproductions via surfaces capable of vibrating. These resonators are simply screwed onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces which are capable of vibrating. Vibration of these surfaces already create a partly impressive sound in the entire surrounding area. These resonators are not suitable for use on glass surfaces!

A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.



Specifications

Article numberAR-30
EAN4007754220650
TypeFull-Range
Power Handling (RMS)15 Watts
Power Handling (max)30 watts
Impedance8 ohms
Frequency Responsedep. on the installation
Resonant Frequency (Fs)600 Hz
DC Resistance (Re)–
Voice Coil Inductance (Le)–
Total Q (Qts)–
Diaphragm Mass Inc. Airload (Mms)–
Mechanical Compliance of Suspension (Cms)–
BL Product (BL)–
Voice Coil Diameter–
Overall Outside Diameter80 mm Ø
Overall Depth–
Overall Dimensions (L x W x H)Ø 80 mm x 40 mm
Mounting surface dimensions–
# Mounting Holes6
Mounting typeScrew connection / screwable mounting plate
Weight0.425 kg
Article numberAR-30
EAN4007754220650
Additional information
Power Handling (RMS)15 Watts
Power Handling (max)30 Watts
Impedance8 ohms
Frequency responsedep. on the installation
Resonant Frequency (Fs)600 Hz
Overall Outside Diameter80 mm Ø
Overall Dimensions (L x W x H)Ø 80 mm x 40 mm
# Mounting Holes6
Mounting typeScrew connection / screwable mounting plate
Weight0.425 kg
