Dayton Audio HDN-8 Weatherproof sound exciter Bass Shaker

Compact and extremely versatile, the HDN-8 Sound Exciter Transducer lets you create high-quality ‘hidden speakers’ in walls, ceilings, floors, furniture, seating, and virtually any other surface you can think of resulting in great invisible sound.

Impedance
8 ohms
Power Handling (RMS)
50 Watts
Power Handling (max)
100 watts

€27.45

452 in stock

Delivery options and total cost confirmed at checkout.

View full specifications
Not sure it fits your setup?

Ask us to check connections, dimensions and compatibility before you order.

Get compatibility advice
Description

Highlights

  • Rugged plastic housing with flat black finish

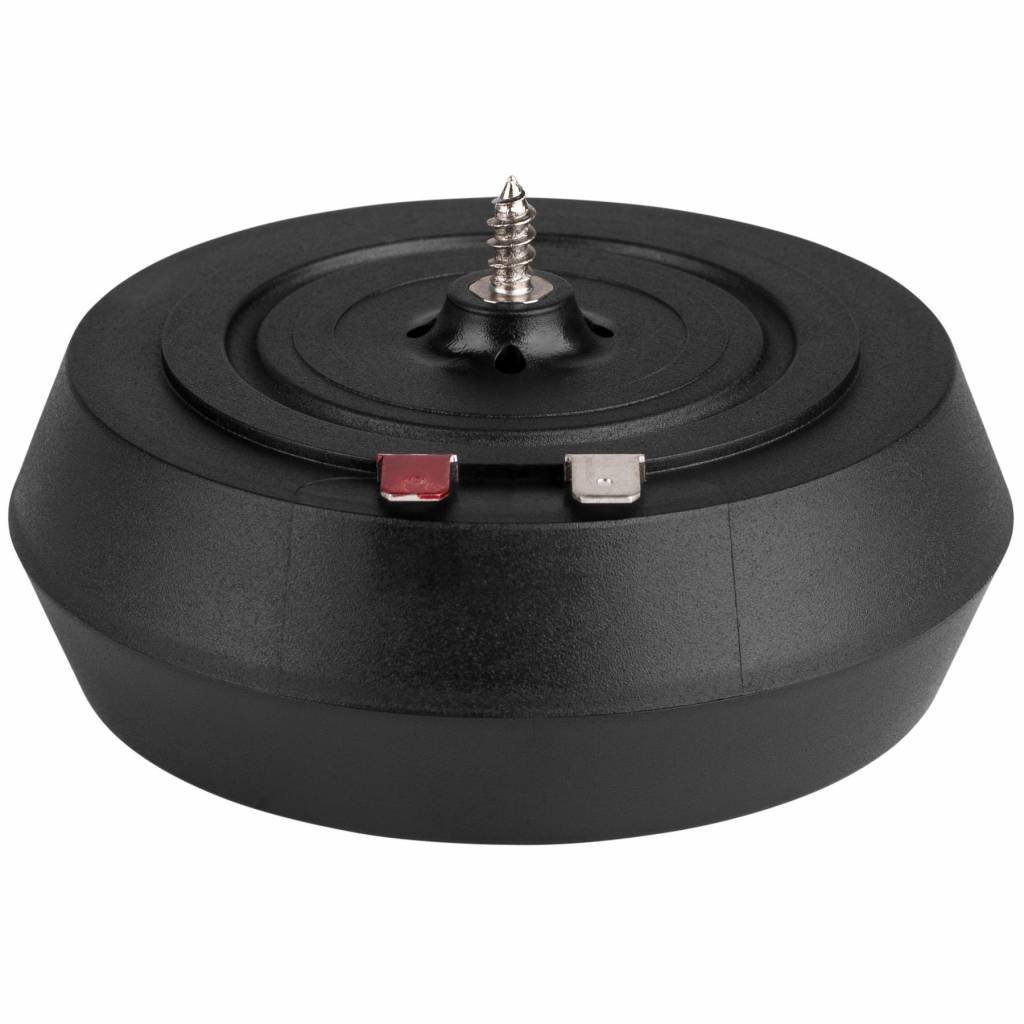

  • Coarse-threaded mounting stud for single-point mounting into almost any material
  • Hermetically-sealed design for installation in wet or humid environments



Product details

Dayton Audio HDN-8 Weatherproof Sound Exciter Transducer



Unlike a tactile transducer that delivers ‘shake’ effects to your listening experience, the HDN-8 Sound Exciter Transducer is a full range, versatile, compact transducer that can excite a surface or structure over a wide bandwidth, enabling the creation of completely hidden audio systems in walls, ceilings, and floors. Its high power handling allows it to produce useful sound levels with a small number of transducers, and its hermetically-sealed design permits indoor or outdoor installation, even in wet or humid environments such as outside decking or an inside bath/shower installations. It features a single, coarse-threaded mounting stud that easily installs into wood, fiberglass, or plastic, and the 8-ohm impedance allows integration with conventional audio amplifiers.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Specifications

Article numberHDN-8
EAN0848791000041
TypeFull-Range
Power Handling (RMS)50 Watts
Power Handling (max)100 watts
Impedance8 ohms
Frequency Response40 – 15,000 Hz (typical)
Resonant Frequency (Fs)695 Hz
DC Resistance (Re)7.46 ohms
Voice Coil Inductance (Le)0.86 mH
Diaphragm Mass Inc. Airload (Mms)38.2 g
Mechanical Compliance of Suspension (Cms)–
BL Product (BL)18.2 Tm
Voice Coil Diameter50 mm
Overall Outside Diameter101.4 mm
Overall Depth34.5 mm
Overall Dimensions (L x W x H)–
Mounting surface dimensions–
# Mounting Holes–
Mounting typeThreaded mounting
Weight1.0 kg
plusWeatherproof
minLess suitable for sim racing
Article numberHDN-8
EAN0848791000041
Additional information
Power Handling (RMS)50 Watts
Power Handling (max)100 watts
Impedance8 ohms
Frequency response40 – 15,000 Hz (typical)
Resonant Frequency (Fs)695 Hz
DC Resistance (Re)7.46 ohms
Voice Coil Inductance (Le)0.86 mH
Diaphragm Mass Inc. Airload (Mms)38.2 g
BL Product (BL)18.2 Tm
Voice Coil Diameter50 mm
Overall Outside Diameter101.4 mm
Overall Depth34.5 mm
Mounting typeThreaded mounting
Weight1.0 kg
