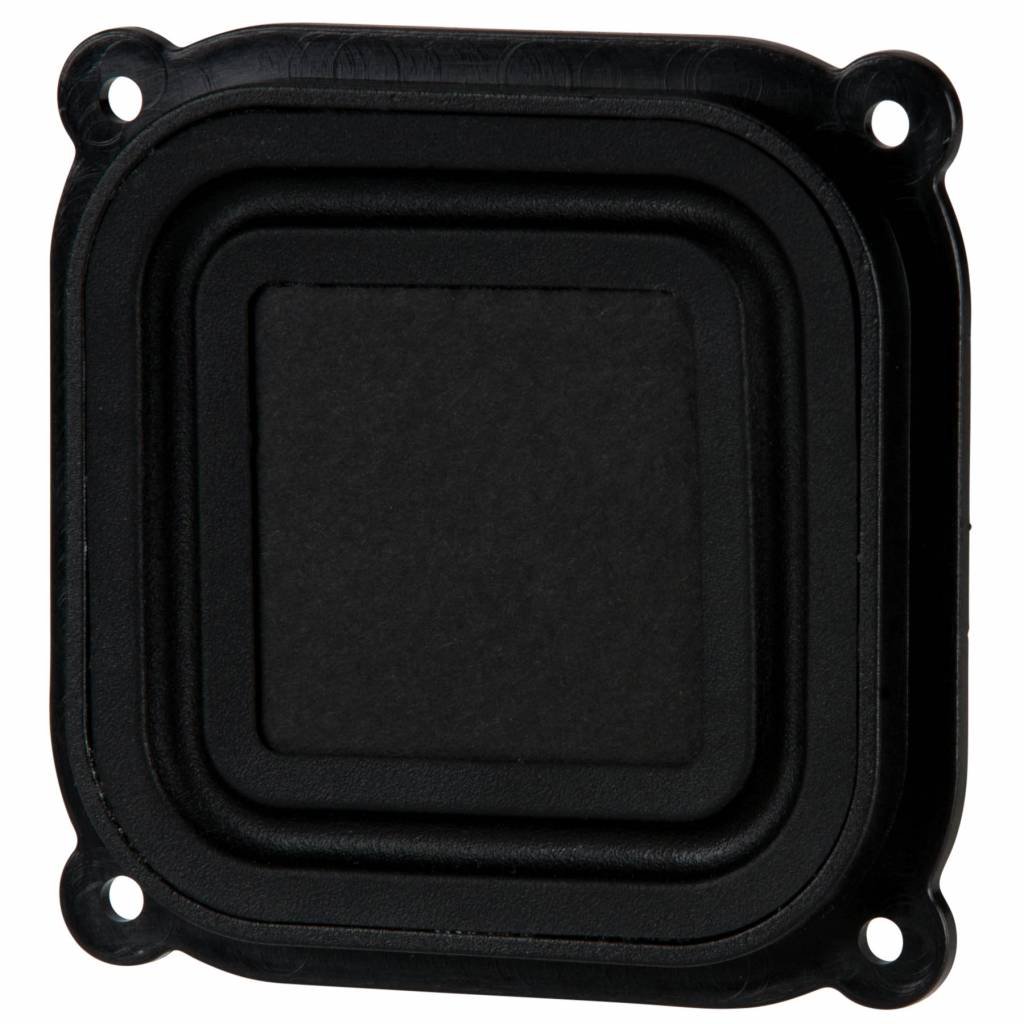

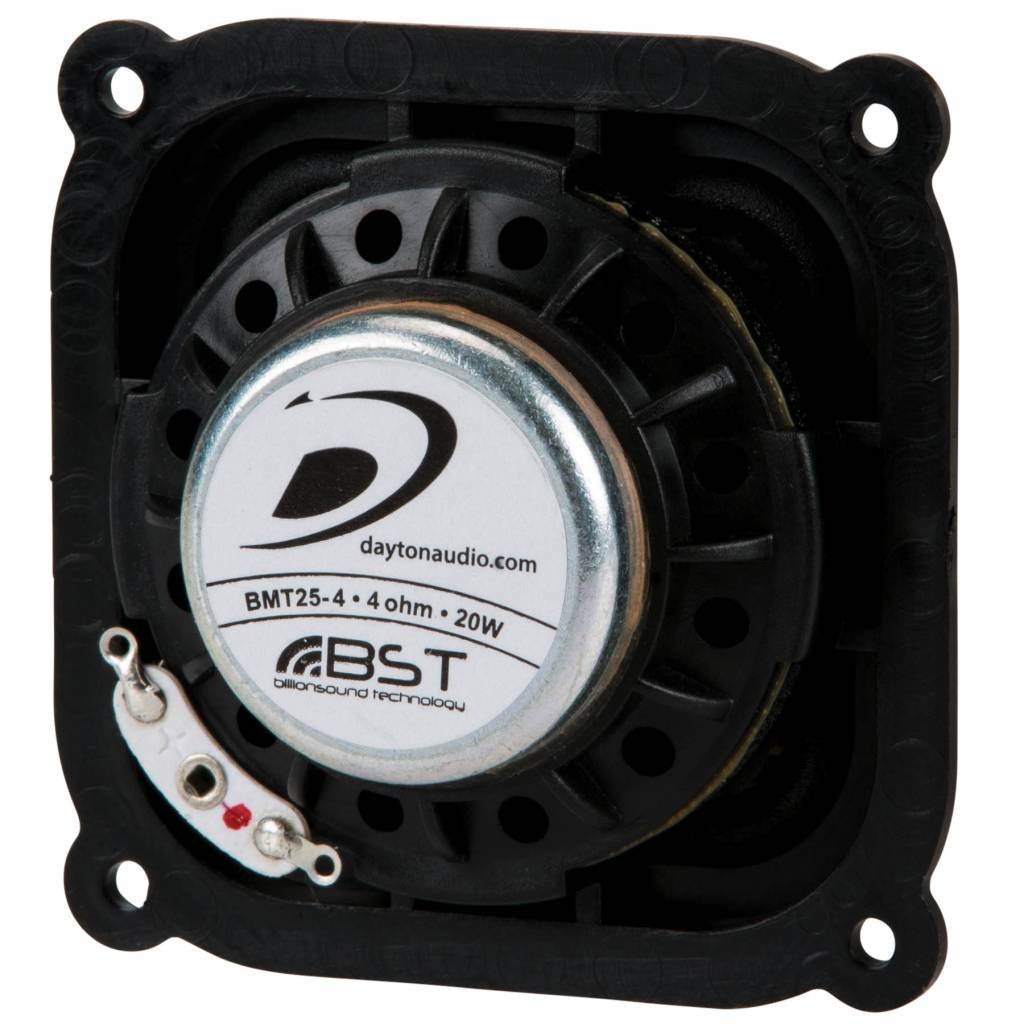

Dayton Audio DML25-4 2″ Distributed Mode Loudspeaker Transducer 20W 4 Ohm

Dayton Audio’s DML (Distributed Mode Loudspeaker) full-range speaker combines the compactness of an exciter with the pistonic air modulation of a standard speaker, making it perfect for use in sound bars.

Impedance (Z)
4 ohms
Power Handling (RMS)
20 Watts
Power Handling (max)
40 Watts

€27.95

4 in stock

Delivery options and total cost confirmed at checkout.

View full specifications
Not sure it fits your setup?

Ask us to check connections, dimensions and compatibility before you order.

Get compatibility advice
SKU: DML25-4 Categories: , ,
Description

Highlights

  • Unique, square-shaped from for tight driver-to-driver placement
  • Extended frequency response up to 15,000 Hz due to low a inductance motor
  • Wide off-axis dispersion for placement flexibility
  • Perfect for modern audio applications such as speaker bars and line arrays



Product details

Dayton Audio DML25-4 2″ Distributed Mode Loudspeaker 20W 4 Ohm



The DML25-4 2″ full-range transducer, from Dayton Audio, produces an amazing amount of quality sound while maintaining a small form factor. Designed to move air like a traditional speaker, this driver’s unique shape lends itself to modern audio applications, such as a speaker bars, docking stations, and satellite speakers, where sound is to be heard without the source being seen.



Great off-axis directivity enables flexible placement options, while the wide frequency response (that extends from 150 Hz up to 15,000 Hz) delivers cost savings to engineers… no crossover components or frequency-specific drivers are required. The Dayton Audio DML25-4 is a natural selection for designing and building thin column line array speakers.



Dayton Audio DML outperforms the competition!



Specifications

Article numberDML25-4
EAN0848791000959
Woofer SeriesDayton Audio Specialty Drivers Series
Nominal Diameter2"
Power Handling (RMS)20 Watts
Power Handling (max)40 Watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)82.1 dB
Frequency Response150 to 15,000 Hz
Voice Coil Diameter0.98"
DC Resistance (Re)4.30 ohms
Voice Coil Inductance (Le)0.09 mH
Resonant Frequency (Fs)212 Hz
Mechanical Q (Qms)3.83
Electromagnetic Q (Qes)1.50
Total Q (Qts)1.10
Diaphragm Mass Inc. Airload (Mms)3.70g
Mechanical Compliance of Suspension (Cms)0.15 mm/N
Surface Area of Cone (Sd)4.64 cm²
BL Product (BL)3.86 Tm
Compliance Equivalent Volume (Vas)0.0001 ft.³
Maximum Linear Excursion (Xmax)1.5 mm
Cone / Diaphragm MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

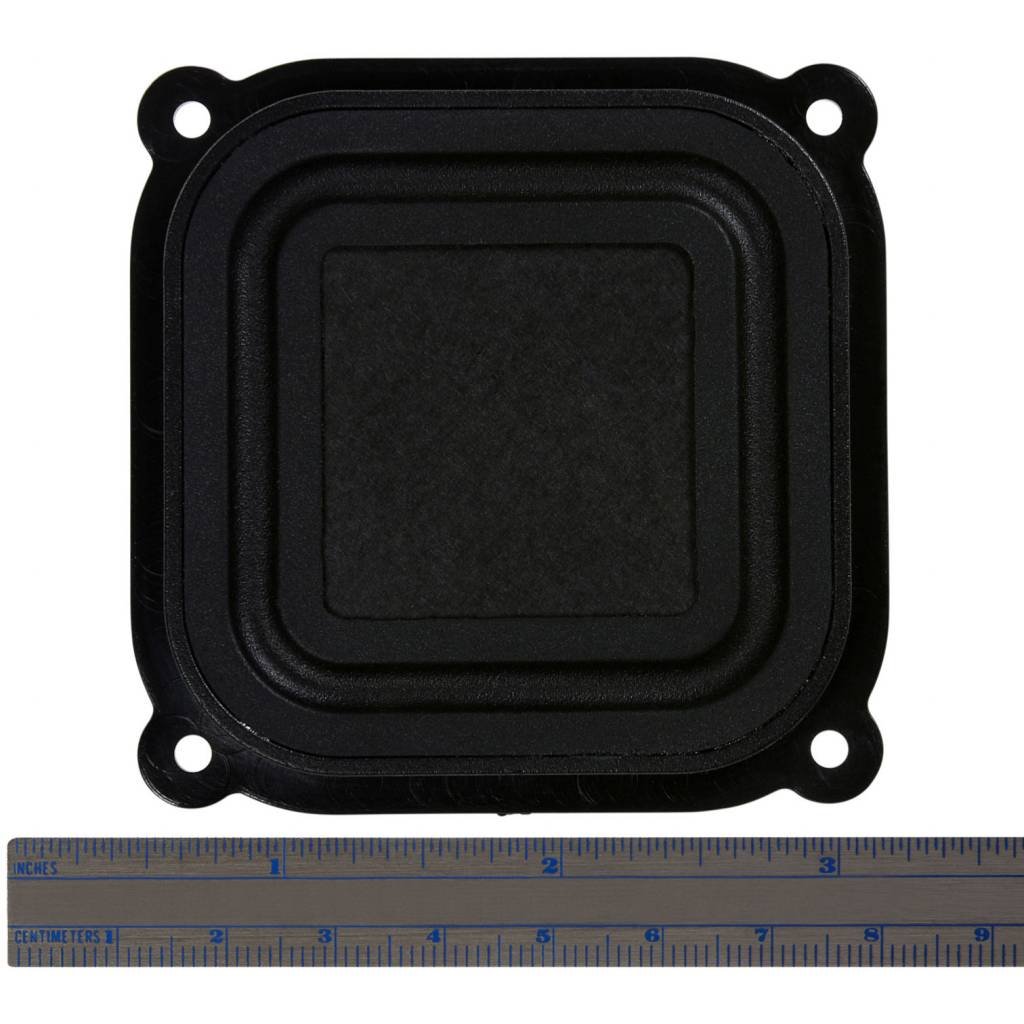

Overall Outside Diameter2.63" x 2.63"

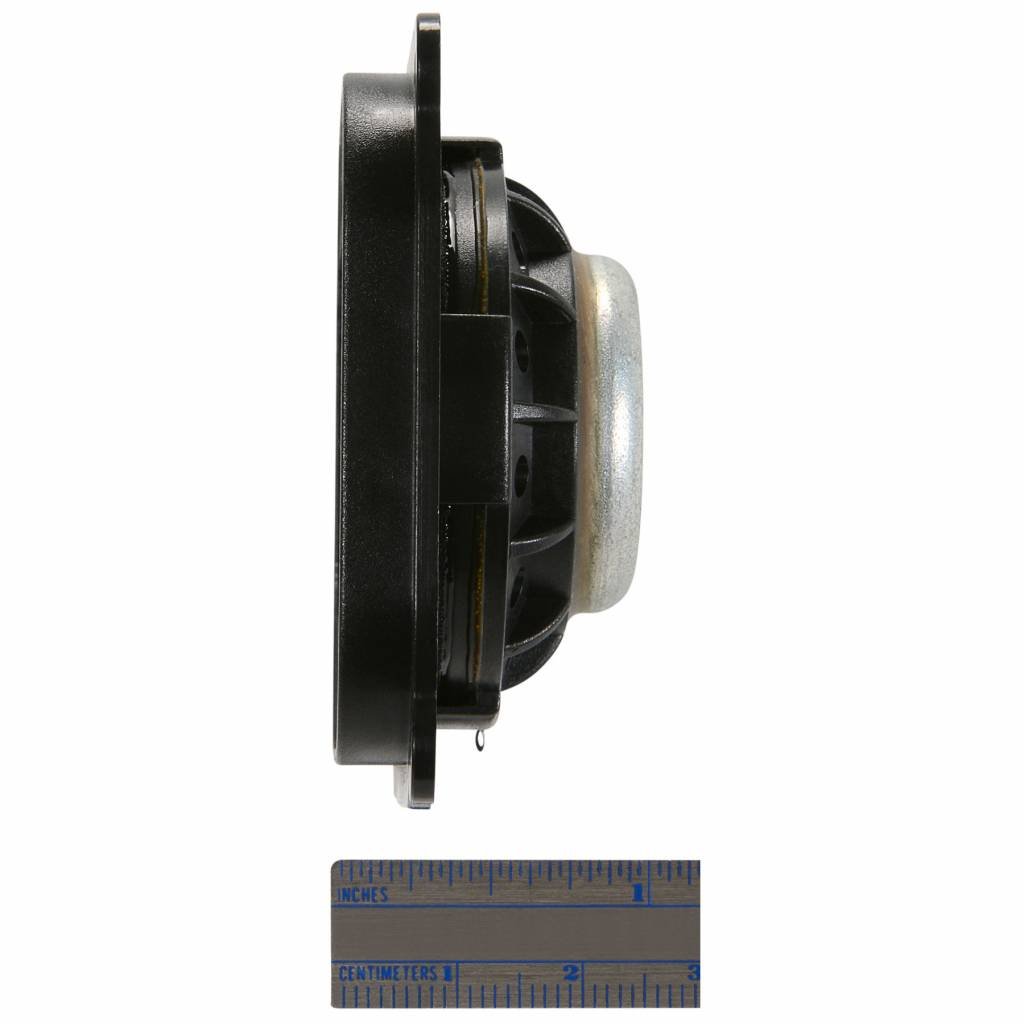

Overall Depth1.04"
Baffle Cutout Diameter2.34" x 2.34"
# Mounting Holes4
Article numberDML25-4
EAN0848791000959
Additional information
Woofer SeriesDayton Audio Specialty Drivers Series
Nominal Diameter2″
Power Handling (RMS)20 Watts
Power Handling (max)40 Watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)82.1 dB
Frequency response150 to 15,000 Hz
Voice Coil Diameter0.98″
DC Resistance (Re)4.30 ohms
Voice Coil Inductance (Le)0.09 mH
Resonant Frequency (Fs)212 Hz
Mechanical Q (Qms)3.83
Electromagnetic Q (Qes)1.50
Total Q (Qts)1.10
Diaphragm Mass Inc. Airload (Mms)3.70g
Mechanical Compliance of Suspension (Cms)0.15 mm/N
Surface Area of Cone (Sd)4.64 cm²
BL Product (BL)3.86 Tm
Compliance Equivalent Volume (Vas)0.0001 ft.³
Maximum Linear Excursion (Xmax)1.5 mm
Cone / Diaphragm MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium
Overall Outside Diameter2.63″ x 2.63″
Overall Depth1.04″
Baffle Cutout Diameter2.34″ x 2.34″
# Mounting Holes4
