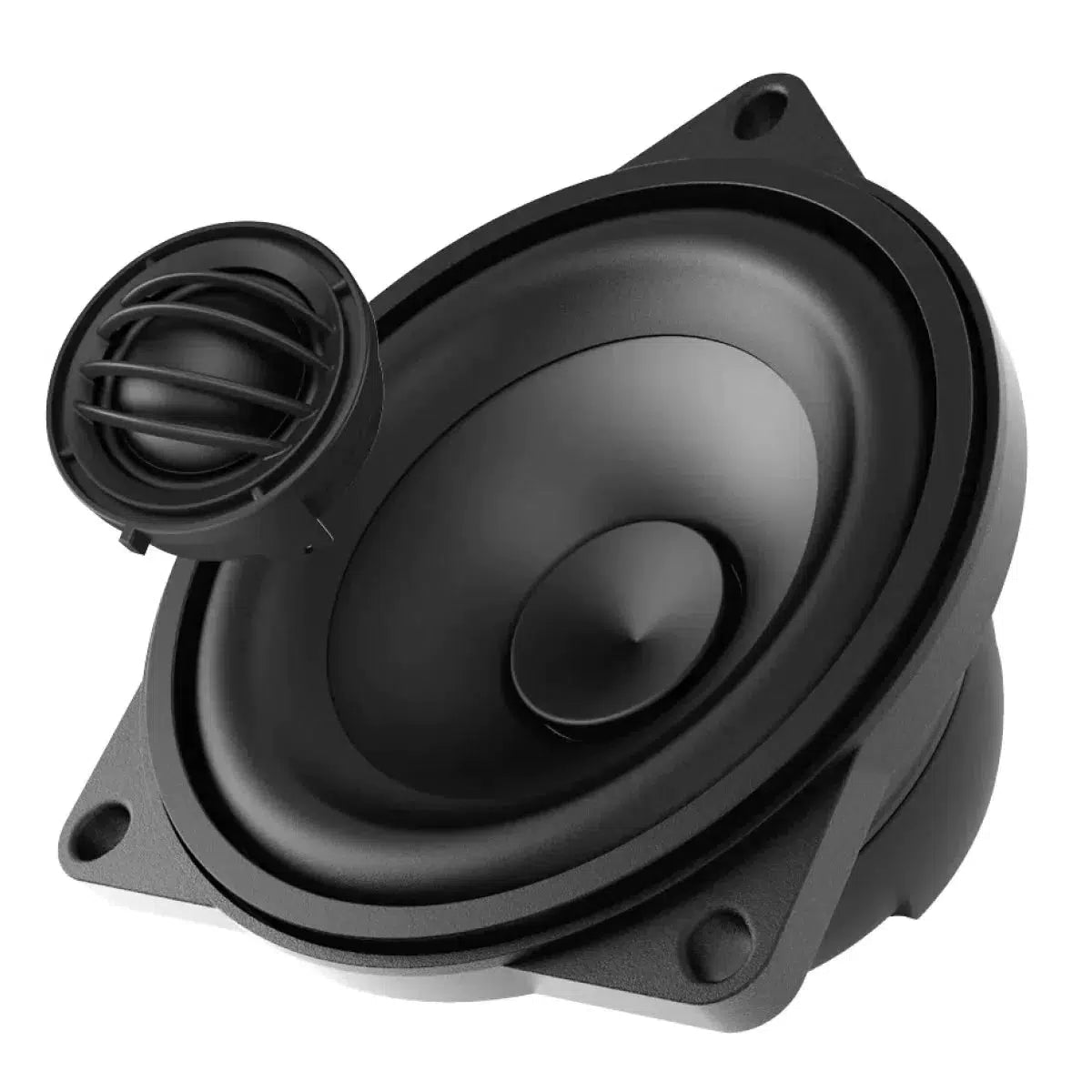

Audison Great APBMW K4M

Audison Great APBMW K4M

€237.00

Audison Great APBMW K4M

Availability: in stock

SKU:8310634152203 Category:

Start your journey with outstanding sound with the Prima APBMW K4M – a specially designed speaker set from Audison for BMW. This two-way kit creates a three-dimensional soundstage that brings your music to life and gives every note a precise timbre. Thanks to the water-repellent pressed paper membrane of the 100mm midrange driver, a natural sound is ensured for a convincing sound experience. With a peak power of 100 W and a high-pass cutoff in the range of 150-200 Hz, this product is an upgrade you don’t want to miss.
TECHNICAL DATA
Woofer Size 100 mm
Tweeter Size 29 mm
Woofer voice coil diameter 25 mm
Tweeter voice coil diameter 25 mm
Crossover Type 89 Crossover Type Hi-Pass: 6 KHz @ 6dB/Oct.
Magnet size woofer 50 x 29 x 3
load capacity – peak 100 W
Load capacity – continuous operation 50 W
Sensitivity 89 dB
impedance 4 ohms
Adjustment Tweeter Level -3; 0
Woofer Cone Diameter 80 mm
Xmax Woofer 0.5 mm
ELECTRO-ACOUSTIC PROPERTIES
Re Woofer 3.3 Ohm
Fs Woofer 90 Hz
Le Woofer mH @ 1 kHz 0.32
Vas Woofer 1.8 l
Mms Woofer 6.4 g
Cms Woofer 0.5
Bxl Woofer 4.8
Qts Woofer 0.48
Qms Woofer 8.9
Spl Woofer 88 dB
GENERALLY
Weight Woofer 0.426 kg
Weight Tweeter 0.06 kg
ACCESORIES
APBMW A4E
Specially designed for the installation of the midrange speaker and coaxial cables on BMW models equipped with non-standard mountings.
CHARACTERISTICS
Specifically designed to upgrade BMW-Mini with factory sound systems to create an expanded soundstage in the three dimensions that enhances the perception of reality in the vehicle cabin;
Neodymium magnet group to maximize performance while minimizing mass and weight;
25 mm (1″) fiberglass woofer voice coil for high power dissipation and rigidity;
Waterproof, pressed paper membrane for medium, natural frequencies free of plastic resonances;
BMW-Mini compatible aluminum die-cast basket with plug & play connections;
25 mm Tetolon tweeter with dispersion characteristics optimized using FEM simulations;
Tweeter support for plug & play OEM assembly included;
30 cm extension with plug & play connections for high flexibility during installation;
Damping removable engine cover;
The crossover is equipped with high-quality components and plug & play connections.
compatibility
BMW 1 Series E81 Base Audio: NC Hi-Fi: Rear storage Top-HIFI: Rear storage
BMW 1 Series E82 Basic Audio: NC Hi-Fi: Rear storage Top HIFI: Rear storage
BMW 1 Series E87 Basic Audio: NC Hi-Fi: Rear storage Top HIFI: Rear storage
BMW 1 Series F20 Basic Audio: NC Hi-Fi: Center Top-HIFI: Center and parcel shelf
BMW 1 Series F21 Basic Audio: NC Hi-Fi: Center Top HIFI: Center and parcel shelf
BMW 2 Series F22 Basic Audio: Rear shelf Hi-Fi: Center and parcel shelf Top HIFI: Center and parcel shelf
BMW 2 Series F23 Basic Audio: NC Hi-Fi: Middle Top HIFI: Middle
BMW 2 Series F45 Basic Audio: NC Hi-Fi: Middle Top HIFI: Middle
BMW 2 Series F46 Basic Audio: NC Hi-Fi: Middle Top HIFI: Middle
BMW 2 Series F87 Basic Audio: Rear shelf HiFi: Center and rear shelf Top HIFI: Center and parcel shelf
BMW 3 Series E90 Basic Audio: Rear storage HiFi: Rear storage Top HIFI: Rear storage
BMW 3 Series F30 Basic Audio: NC Hi-Fi: Center Top-HIFI: Center and parcel shelf
BMW 3 Series F31 Basic Audio: NC Hi-Fi: Middle Top HIFI: Middle
BMW 3 Series F34 Basic Audio: NC Hi-Fi: Center Top HIFI: Center and rear storage
BMW 3 Series F35 Basic Audio: NC Hi-Fi: Center Top HIFI: Center and parcel shelf
BMW 3 Series F80 Basic Audio: NC Hi-Fi: Center and parcel shelf Top HIFI: Center and parcel shelf
BMW 4 Series F32 Basic Audio: NC Hi-Fi: Center Top HIFI: Center and parcel shelf
BMW 4 Series F33 Basic Audio: NC Hi-Fi: Middle Top HIFI: Middle
BMW 4 Series F36 Basic Audio: NC Hi-Fi: Center Top HIFI: Center and parcel shelf
BMW 4 Series F82 Basic Audio: NC Hi-Fi: Center Top HIFI: Center and parcel shelf
BMW 4 Series F83 Basic Audio: NC Hi-Fi: Middle Top HIFI: Middle
BMW 5 Series E60 Basic Audio: Front door and parcel shelf Hi-Fi: Front door and parcel shelf Top HIFI: Front door and parcel shelf
BMW 5 Series E61 Basic Audio: Front door and rear roof Hi-Fi: Front door and rear roof Top HIFI: Front door and rear roof
BMW 5 Series F07 Basic Audio: Front door1 Hi-Fi: Front door, rear door and center Top HIFI: Front door, rear door, center and C-pillar
BMW 5 Series F10 Basic Audio: Rear shelf Hi-Fi: Center and parcel shelf Top HIFI: Center and parcel shelf
BMW 5 Series F11 Basic Audio: Rear roof Hi-Fi: Center and rear roof Top HIFI: Center3 and rear roof
BMW 5 Series F18 Basic Audio: Rear shelf Hi-Fi: Center and parcel shelf Top HIFI: Center and parcel shelf
BMW 5 Series G30 Basic Audio: Rear shelf Hi-Fi: Center and parcel shelf Top HIFI: Center and parcel shelf
BMW 5 Series G31 Basic Audio: NC Hi-Fi: Center and rear roof Top HIFI: Center3 and rear roof
BMW 6 Series F06 Hi-Fi: Center Top-HIFI: Center3 and parcel shelf
BMW 6 Series F12 Hi-Fi: Center Top HIFI: Middle3
BMW 6 Series F13 HiFi: Center Top-HIFI: Center3 and parcel shelf
BMW 6 Series F14 Hi-Fi: Center Top-HIFI: Center3 and parcel shelf
BMW 7 Series F01 Hi-Fi: Center, front door and parcel shelf Top-HIFI: Center, front door, rear door and parcel shelf
BMW 7 Series F02 HiFi: Center, front door and parcel shelf Top-HIFI: Center, front door, rear door and parcel shelf
BMW 7 Series F03 HiFi: Center, front door and parcel shelf Top-HIFI: Center, front door, rear door and parcel shelf
BMW 7 Series F04 HiFi: Center, front door and parcel shelf Top-HIFI: Center, front door, rear door and parcel shelf
BMW 7 Series G11 HiFi: Center Top-HIFI: Center and rear shelf
BMW 7 Series G12 Hi-Fi: Center Top-HIFI: Center and rear shelf
BMW Mini F55 Basic Audio: NC Hi-Fi: Center
BMW Mini F56 Basic Audio: NC Hi-Fi: Center
BMW Mini R55 Basic Audio: Front door HiFi: Front door
BMW Mini R56 Basic Audio: Front door Hi-Fi: Front door
BMW Mini R57 Basic Audio: Front door Hi-Fi: Front door
BMW Mini R58 Basic Audio: Front door Hi-Fi: Front door
BMW Mini R59 Basic Audio: Front door Hi-Fi: Front door
BMW Mini R60 Basic Audio: Front door Hi-Fi: Front and rear door
BMW Mini R61 Basic Audio: Front door Hi-Fi: Front and rear side
BMW Mini F54 Basic Audio: NC Hi-Fi: Center
BMW Mini F60 Basic Audio: NC Hi-Fi: Center
BMW Mini F57 Basic Audio: NC Hi-Fi: Center
BMW X1 E84 Basic Audio: NC HiFi: NC Top-HIFI: Rear storage
BMW X1 F48 Basic Audio: NC Hi-Fi: Middle Top HIFI: Middle
BMW X1 F49 Basic Audio: NC Hi-Fi: Middle Top HIFI: Middle
BMW X3 E83 Basic Audio: Front door HiFi: Front door Top HIFI: Front door
and rear door
